Project Description

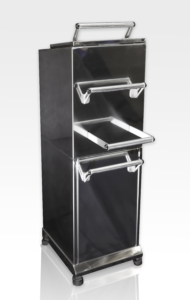

CleanBags/D2

CleanBags/D2 is the manually operated automatic machine for emptying and internally sanitizing disposable urine bags. Unlike the D1 version, this machine has an automatic bag collection system at the end of the cycle. In fact, at the end of the treatment, just push the discharge lever and the bag automatically drops into the lower container, avoiding possible dripping to the outside.

Essential features

  • Measures contained cm. 40x42x125, weight Kg. 55;
  • Fully automatic machine with manual operation;
  • Structure entirely in AISI 316 steel;
  • It does not need to be connected to the electricity grid, avoiding machine downtime due to voltage drops, it works even in the event of a total power failure, the energy cost is zero;
  • It only needs to be connected to the water supply and the sewerage system;
  • Make a double cut at the base of the bag by virtue of the application of the patented mechanism;
  • At the same time as the vertical cut of about 5 cm carried out with two blades, the washing is carried out inside the bags by means of two nozzles. The healthcare facility can use a detergent or disinfectant of its choice as the circulation system provides for suction from a 5-liter tank, regardless of its content;
  • After the treatment, the bag falls into the special container which collects more than 30;
  • Equipped with an electronic control system that provides information on the interventions to be carried out;
  • Able to perform all the operations mentioned in about 10 seconds for the urine and hemodialysis bags;
  • Equipped with a cleaning and sterilization system of the cutting chamber to be activated at the end of each shift;
  • Compatible with the legislative Regulations envisaged such as Machinery Directive 2006/42 / EC;
  • Supplied with: – User / Maintenance manual 2 wall spacers – N ° 1 connection pipe to the mixing system – N °, N ° 1 water inlet tube, N ° 1 drain tube, N ° 1 key for pressure gauge control, 1 battery charger for mixing system.

CleanBags/D2 is protected by an approved Italian patent N ° 1020211000001532

CODE: 4300250
DIMENSIONS: cm 40x42x125
WEIGHT: 55,00 Kg
RDM: 1593794-2
CND: Z1201130

PRICE: QUOTED
